RLA Live Roller Accumulation Conveyors
|
|

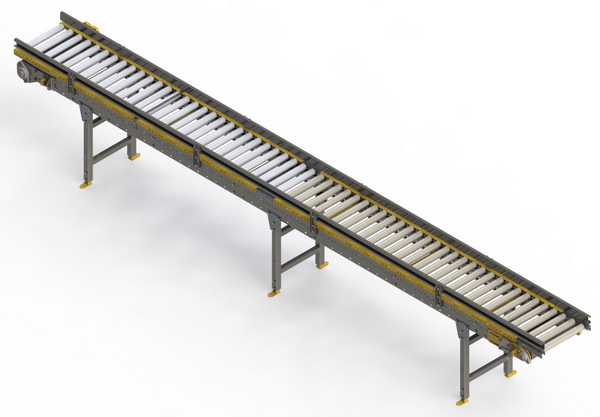

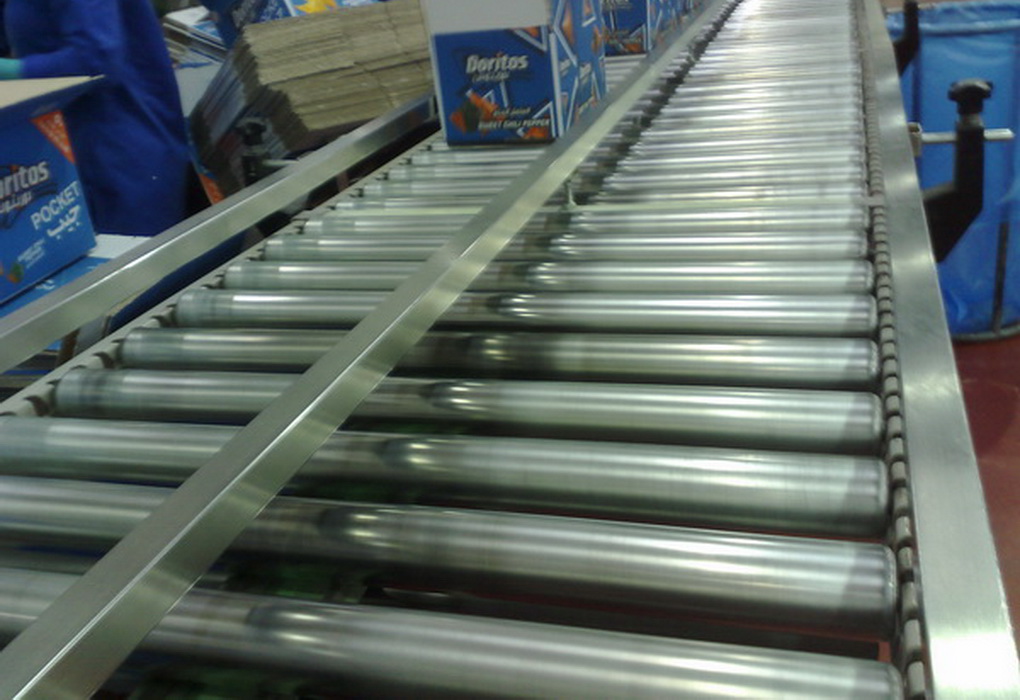

FeaturesThe specially designed sheet metal construction offers a rigid and stable chassis thus ensuring stability, strength and a prolonged belt life under heavy loads. The transport system of this conveyor is made of rollers which are tangentially driven by a belt conveyor running along the whole length of the conveyor. The belt material and precision design execution assures a uniform pressure on all live rollers thus gently transporting the cartons or totes. When accumulation starts the rollers will stop rotating and pressure on the cartons is minimized. |
 |
CharacteristicsThe side channels have 2 levels of precision punched holes and slots that offer a flexible scheme for placing the supporting rollers, and permit the attachment of many accessories, such as side tables, skirts, brackets, guides, etc… The supporting rollers' pitch could be changed to suit the dimensions of totes and boxes being transported. The drive belt is driven by a pulley through an integral reducer and its support rollers optimize the tangential forces between the belt and the driven rollers. |
 |

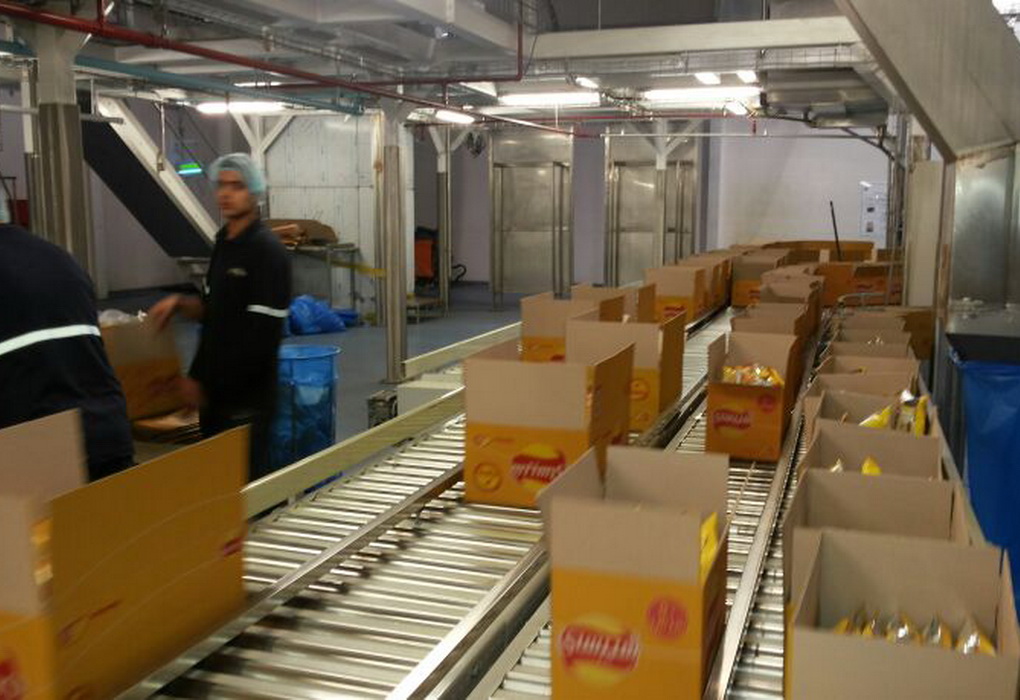

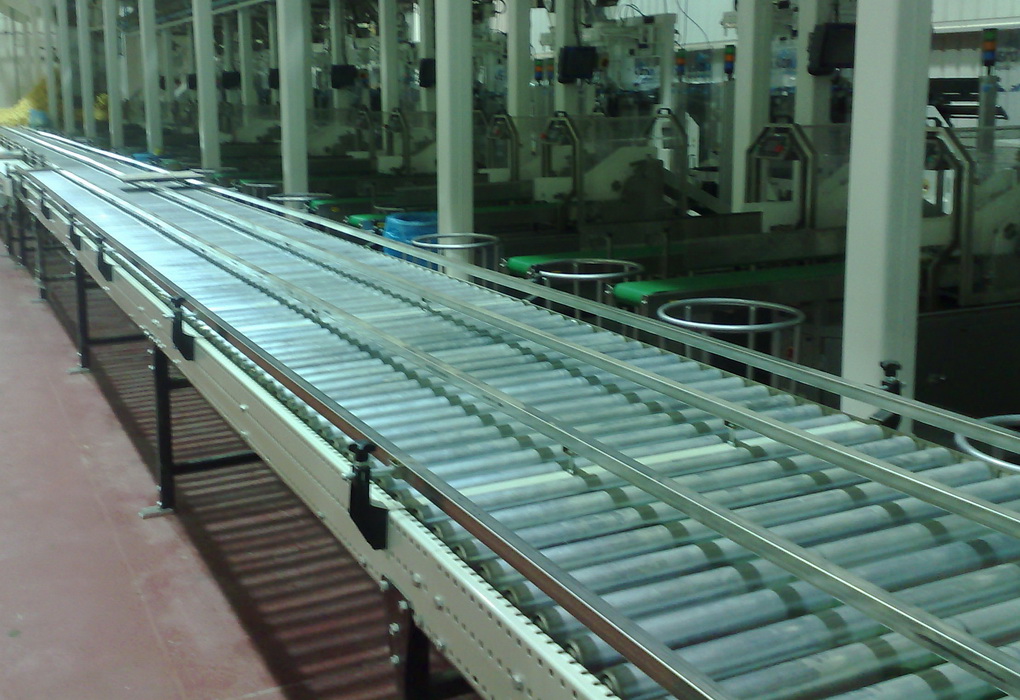

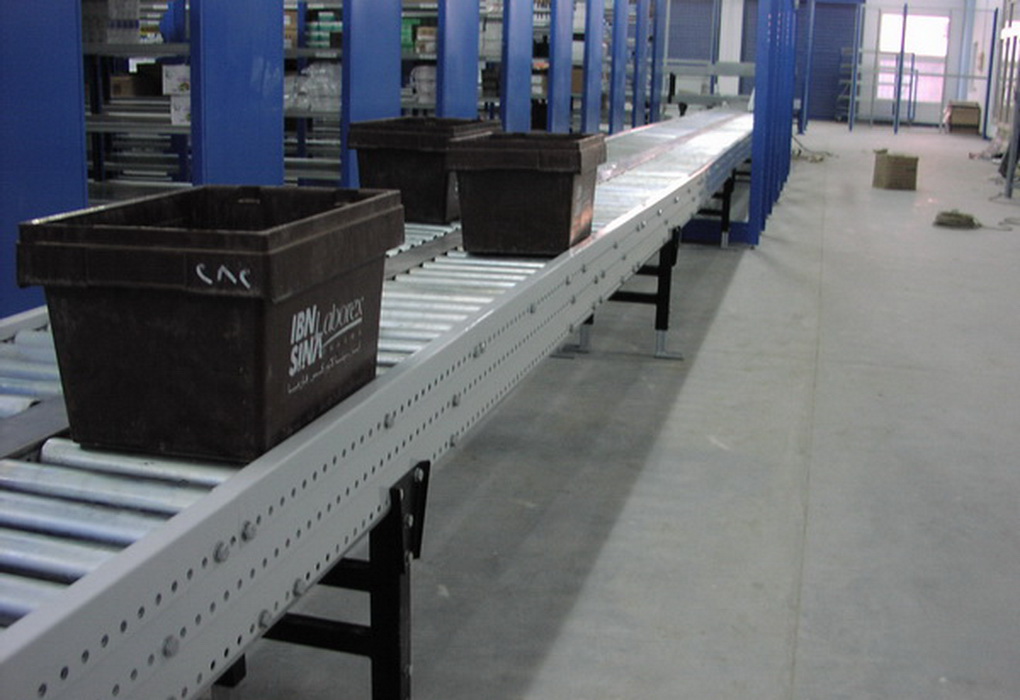

ApplicationsRLA conveyors are used extensively in food industries, production facilities, assembly lines, and general conveyance of light to medium loads where boxes experience a degree of accumulation over relatively long distances. They typically move unit goods such as cartons, crates, and tote boxes. |
 |
RLA Specifications |
|
| Specifications | |||||
|---|---|---|---|---|---|
| Live Roller Diameter | Ø50 mm | ||||
| Supporting Rollers Diameter | Ø50 mm | ||||
| Return Rollers Pitch | 2400 mm | ||||
| Roller Pitch | 90 mm | ||||
| Take-up Distance | 300 mm | ||||
| Linear Speed | 10,20,40 m/min approximately | ||||
| Mains Supply | 380 VAC +/-10%, 50 Hz 3 Phase | ||||
| Motor Power | Calculated based upon belt loading and conveyor length | ||||
| Motor Class | IP54 | ||||
| Insulation Class | IP54 | ||||
| Belt Materials | Synthetic Resins, PVC , PU, Chevrons Rubber, 2 Ply rubber | ||||
| Paint | Electrostatic Epoxy Powder RAL 7035 or RAL 5017 | ||||
| Dimensions | |||||
| Standard Width (W) / Preferred Values | |||||
| Outer Distance (Wo) | |||||
| W | 300 | 400 | 500 | 650 | 800 |
| Wo | 376 | 484 | 592 | 754 | 916 |
| Standard Section Length |
2430 | ||||
| Options | intermediate lengths available ( in 90 mm increments only) | ||||
| Modules are attached together using Butt Couplings, to obtain any desired length. | |||||
| Accessories | |||
|---|---|---|---|
| Under-Trussing | No | Delivery ( Head end) Hopper | No |
| Cross Bracing | No | Head Pulley Hood | No |
| Butt Coupling | Yes | Inside scraper | No |
| Nose Wheel | Yes | Outside Scrapers | No |
| Front Bumper | No | Emergency Pull Cord | No |
| Tail Bumper | No | Brake Rollers | No |
| End Stops | Yes | Troughing Attachment. | No |
| Deflector | No | Optical Switches and Controls | Yes |
| Drip Pan | No | Push Button Station | Yes |
| Chutes | No | Pushers | No |
| Guard Rails | Yes | Back Stops | No |
| Side Skirts | No | Longitudinal Side Tables | Yes |
| Feed (Tail end) Hopper | No | Individual Side Tables | Yes |
